| 加工定制：是 | 品牌：KS | 型号：KS-2319D220P00*** |
| 声道：单声道 | 是否有源：有源 | 材质：ABS |
| 规格尺寸(mm)：23*19MM | 驱动方式：电磁式 |

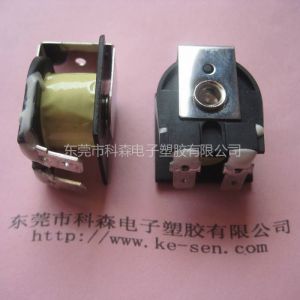

220伏机械式蜂鸣器
| ----- PHOTO ----- | ------ITEM------ | KS-2319D110P00*** | KS-2319D220P00*** |
RATED VOLTAGE-额定电压 | 110 VDC | 220 VDC | |
| OPERATING VOLTAGE-电压范围 | 60.0V ~ 150VAC | 180V ~ 260VAC | |
| RATED CURRENT (max) 消耗电流* | max.25mA | max.30mA | |
| SOUND PRESSURE LEVEL(min)-输出音压* | min.85dB | min.90dB | |
| FUNDAMENTAL FREQUENCY-频率* | 50 ± 5 Hz | 50 ± 5 Hz | |
| OPERATING TEMPERATURE RAGE-操作温度 | -10℃ to +60℃ | -10℃ to +60℃ | |
| STORAGE TEMPERATURE RAGE-贮藏温度 | -10℃ to +70℃ | -10℃ to +70℃ | |
| *Value applying at rated voltage | |||
| ------OUTLINE DRAWING -(UNIT:mm)------- |
 |
| ------OUTLINE DRAWING -(UNIT:mm)------- |
|
